Multimodal lung cancer theranostics via manganese phosphate/quercetin particle

Abstract

The diagnosis and treatment of non-small cell lung cancer in clinical settings face serious challenges, particularly due to the lack of integration between the two processes, which limit real-time adjustments in treatment plans based on the patient’s condition and drive-up treatment costs. Here, we present a multifunctional pH-sensitive core-shell nanoparticle containing quercetin (QCT), termed AHA@MnP/QCT NPs, designed for the simultaneous diagnosis and treatment of non-small cell lung cancer. Mechanistic studies indicated that QCT and Mn²⁺ exhibited excellent peroxidase-like (POD-like) activity, catalysing the conversion of endogenous hydrogen peroxide into highly toxic hydroxyl radicals through a Fenton-like reaction, depleting glutathione (GSH), promoting reactive oxygen species (ROS) generation in mitochondria and endoplasmic reticulum, and inducing ferroptosis. Additionally, Mn²⁺ could activate the cGAS-STING signalling pathway and promote the maturation of dendritic cells and infiltration of activated T cells, thus inducing tumor immunogenic cell death (ICD). Furthermore, it exhibited effective T2-weighted MRI enhancement for tumor imaging, making them valuable for clinical diagnosis. In vitro and in vivo experiments demonstrated that AHA@MnP/QCT NPs enabled non-invasive imaging and tumor treatment, which presented a one-stone-for-two-birds strategy for combining tumor diagnosis and treatment, with broad potential for clinical application in non-small cell lung cancer therapy.

Graphical Abstract

Introduction

Non-small cell lung cancer stands as the second most prevalent malignancy globally and is the foremost cause of cancer-related mortality, with an estimated 2 million new cases and 1.76 million deaths annually [1]. Owing to the absence of precise and effective early diagnostic methods, Owing to the absence of precise and effective early diagnostic methods, non-small cell lung cancer frequently progresses unnoticed, leading to late-stage diagnoses and significantly elevated mortality rates [2]. Consequently, many patients present with advanced disease, contributing to a disconcertingly low 5-year relative survival rate of merely 19% [3]. Despite advancements in diagnostic techniques and treatment modalities over the past decade, clinical management of non-small cell lung cancer continues to pose significant challenges.

From a diagnostic standpoint, traditional imaging methods in the clinic frequently fail to detect early cancerous lesions, metastatic foci, and post-treatment foci [4]. This inadequacy often precludes timely intervention, thereby compromising patient outcomes. Therapeutically, traditional strategies, including surgery, radiotherapy, and conventional chemotherapy, are fraught with limitations for non-small cell lung cancer treatment. Surgery is accompanied by considerable trauma, while radiotherapy often incurs deleterious side effects to surrounding healthy tissues, and small molecule drug-targeted chemotherapy has a high treatment costs [5].

Moreover, diagnostic and therapeutic approaches are relatively independent in the clinic, making it challenging for patients to access low-cost and high-efficiency diagnosis and treatment integration services. Therefore, there is an urgent need for integrated diagnosis and therapeutic strategies that are both cost-effective and high-precision to enhance patient survival in the clinic.

Traditional Chinese Medicine (TCM), revered for its rich repository of active compounds, presents a promising avenue in the quest for novel antitumor agents [6]. Unlike traditional chemotherapeutic drugs such as cisplatin, adriamycin, and vincristine, TCM-derived active ingredientsare characterized by their low toxicity, high bioavailability, and high safety [7, 8]. Quercetin (QCT), a natural flavonoid, is the main active ingredient of Pueraria Mirifica, Psoralea, Scutellaria baicalensis, Ginkgo biloba, Sea buckthorn, and other clinically used Chinese herbal medicines [9]. It has attracted attention for its multifaceted biological activities, including antitumor [10], anti-inflammatory [11], and antiviral effects [12]. Notably, QCT exhibits inhibitory effects on a variety of tumors with mechanisms that involve apoptosis induction via the upregulation of the pro-apoptotic protein Bax and the downregulation of the anti-apoptotic protein Bcl-2, culminating in caspase cascade activation [13]. However, the clinical application of QCT has been hindered by its poor water solubility, low bioavailability, and inadequate targeting capabilities.

To address these limitations, various types of nanodelivery systems, including liposomes [14], micelles [15] and nanoparticles [16], have been devised to enhance QCT’s bioavailability. The structural features of QCT, including phenolic hydroxyl and carbonyl groups, super coordinated oxygen atoms, intact large π-bonds, and suitable spatial configuration, enable chelation with various metal ions (e.g., calcium, zinc, iron, etc.), facilitating the formation of nanoprecipitated cores [17]. These cores can be coated with glycan materials, lipid materials, or polyethylene glycol (PEG) and its derivatives for effective encapsulation. This delivery drug nanosystem present several advantages: they protect active molecules of TCM from degradation and leakage, allow for responsive release in the acidic lysosomal environment, with concomitant increase in lysosomal osmotic pressure to promote lysosomal escape, and utilize biodegradable and bioresorbable materials that promise clinical translatability [18].

Manganese (Mn), an essential trace element, holds significant promise for therapeutic applications. In particular, manganese ions (Mn²⁺) exhibit the capacity to complex with the phenolic hydroxyl and carbonyl groups of QCT, forming stable complexes that enhance QCT’s bioavailability and tumor-targeting efficiency. Beyond its encapsulating ability, Mn²⁺ plays a pivotal role in cellular metabolism, growth, survival, and regulation, influencing processes such as signaling, maintenance of homeostasis, and immune activation [19]. In the tumor intracellular environment, Mn²⁺ can induce ferroptosis through depleting hydrogen peroxide (H₂O₂), decreasing glutathione (GSH), inducing a Fenton-like response and increasing reactive oxygen species (ROS) production [20]. The subsequent lipid peroxidation causes the rupture of mitochondria and endoplasmic reticulum in tumor cells, which activates the cGAS-STING signaling pathway, ultimately inducing immunogenic cell death (ICD) [21]. Concurrently, Mn²⁺ can directly promote the maturation of dendritic cells and activates CD4 + and CD8 + T cells while inhibiting regulatory T cells (Tregs), thereby amplifying autoimmune response [22]. Harnessing the synergism between QCT and Mn²⁺ through in situ mineralization of their complexes allows for enhanced antitumor activity while reducing toxicity. The integration of Mn²⁺ not only enhances therapeutic outcomes but also facilitates precise tumor diagnostics [23]. For instance, Fu et al. demonstrated that Mn²⁺ released from the degradation of Mn-doped calcium phosphate (MnCaP), exhibiting high longitudinal relaxation (r1) values, can be effectively utilized in MRI to monitor the treatment process [24]. In another case, the pH-responsive polymer-coated PtMn (R-PtMn) were synthesized, significantly enhancing both T₁ (bright) and T₂ (dark) MRI contrast ratios by 3-fold and 3.2-fold, respectively, further underlining Mn²⁺’s diagnostic potential [25]. The increased concentration of free Mn²⁺ in tumor cells resulted in a significant enhancement of contrast in T₂-weighted MRI images, which can be used for the diagnosis of lung and deep-seated cancers [26].

In this study, we developed an alendronate- hyaluronic acid (HA)-coated QCT-loaded pH-sensitive manganese phosphate NPs, termed AHA@MnP/QCT NPs, with dual functionalities: (1) Accurate diagnosis: HA-encapsulated manganese phosphate NPs act as a contrast agent, with tumor-specific accumulation achieved through the specific binding of HA to CD44 receptors on tumor cells. The subsequent release of Mn²⁺ in the tumor microenvironment significantly enhances the contrast of T₂-weighted MRI images, aiding in precise tumor imaging; (2) Highly effective treatment: QCT induces apoptosis of tumor cells, while Mn²⁺ promotes ferroptosis of tumor cells and activates cytotoxic T-lymphocytes (CTLs) within the tumor microenvironment. This combined approach exerts multiple therapeutic mechanisms, including TCM therapy, ferroptosis-based therapy, and immunotherapy. This study focuses on the diagnostic effect and mechanism of action of HA-encapsulated QCT-loaded pH-sensitive manganese phosphate NPs on the integration of tumor diagnosis and treatment from a multidimensional perspective, which provides a novel one-stone-for-two-birds strategy to promote the integration of tumor diagnosis and treatment in the clinic.

Results and discussion

Preparation and characterisation of AHA@MnP/QCT NPs

Alendronate-hyaluronic acid graft polymer coated quercetin-loaded manganese phosphate nanoparticles (AHA@MnP/QCT NPs) were synthesized following a previously reported method [27]. The process involved three steps: (i) Activation of the carboxylic groups on HA by adding N-hydroxysuccinimide (NHS) and 1-ethyl-(3-dimethylaminopropyl) carbodiimide hydrochloride (EDC), which enabled grafting with alendronate to form alendronate-hyaluronic acid graft polymer (AHA). (ii) A stable core was then formed by mixing MnCl₂ with QCT through a complexation reaction. (iii) 4-(2-Hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES) buffer containing AHA was added dropwise to the above mixture under ultrasonic conditions. As shown in Scheme 1, the phosphate group in AHA encapsulates the Mn²⁺-QCT complex, forming negatively charged AHA@MnP/QCT NPs. Various concentrations of Mn²⁺ and AHA were investigated to determine their influence on particle size, polydispersity index (PDI), zeta potential and QCT encapsulation efficiency (Table S1-2). Additionally, cellular uptake of different nanoparticles by A549 cells was quantified using flow cytometry (Figure S1). Finally, the optimal formulation was determined to be 100 mM Mn²⁺ and 10 mg/ml AHA for nanoparticle preparation.

Scheme 1

Schema of the preparation of AHA@MnP/QCT nanoparticles and its one-stone-for-two-birds strategy to attain the integrated diagnosis and treatment of non-small cell lung cancer. The AHA@MnP/QCT NPs vector sustainably releases QCT and Mn²⁺ into the acidic environment, which induces apoptosis and promotes ferroptosis in cells via the Fenton-like reactions. Free Mn²⁺ induces immunogenic cell death by activating DCs and promoting the activation and proliferation of T cells. Non-invasive imaging is achieved by accumulating AHA@MnP/QCT and enhancing T₂-MRI signal at the tumor site

Following mineralization, the AHA@MnP/QCT NPs exhibited a translucent yellowish-brown appearance without noticeable precipitation (Fig. 1A). In contrast, MnP NPs lacking AHA encapsulation was unsuitable as carriers due to their propensity for aggregation and precipitation, a result of infinite core growth (Figure S2 and S3). Scanning electron microscopy (SEM) and transmission electron microscopy (TEM) images showed that the AHA@MnP/QCT NPs were monodispersed, displaying a well-defined spherical morphology with a smooth surface (Fig. 1B-C). The mean diameter of the NPs was measured to be between 120 and 150 nm. For further characterization of synthesized NPs, elemental analysis using energy-dispersive spectroscopy (EDS) confirmed the presence of C (24.5%), O (44.5%), Mn (24.7%) and P (6.3%) on the NPs surface, indicating successful nucleation and growth of MnP/QCT minerals within the AHA matrix (Fig. 1D-E). Dynamic light scattering (DLS) analysis demonstrated a hydrodynamic diameter of 205.60 nm with a polydispersity index (PDI) of 0.20 (Fig. 1F). The AHA@MnP/QCT NPs showed good homogeneity compared to the hydrated particle size of each of the other components (Figure S4). The zeta potential measurements indicated distinct charges for each component: -14.03 mV (QCT), + 2.47 mV (MnCl₂), -2.34 mV (MnP NPs), -4.24 mV (AHA@MnP NPs) and − 18.6 mV (AHA@MnP/QCT NPs) (Fig. 1G). The slightly larger particle size measured by DLS likely results from the Brownian motion of the NPs in solution and the presence of a few solvent layers [28]. Fourier transform infrared spectrometry (FTIR) data (Fig. 1H) showed strong characteristic peaks at 872, 1043, 1171, 1460, and 3404 cm^− 1, corresponding to the vibration of different characteristic functional groups within MnP NPs. The fluctuations at 872 and 1043 cm^− 1 may be related to the vibration of manganese oxides, 1171 and 1461 cm^− 1 are characteristic absorption peaks of phosphate, and the characteristic peak at 3404 cm^− 1 is considered to be a hydroxyl-related peak. AHA@MnP NPs and AHA@MnP/QCT NPs, and the characteristic peaks were attributed to. The diminished intensity of these absorption peaks in AHA@MnP NPs and AHA@MnP/QCT NPs compared to MnP NPs suggested the encapsulation of AHA and the complexation of QCT, which lowers the concentration of MnP at equivalent mass, thereby indicating the successful integration of AHA, QCT and MnP. X-ray photoelectron spectroscopy (XPS) further confirmed NPs formulation, with binding energy of Mn 2p at 641.08 eV, O 1s at 531.08 eV, C 1s at 285.08 eV and P 2p at 168.08 eV for AHA@MnP/QCT NPs (Fig. 1I). The addition of AHA and QCT increased the intensity of P 2p and O 1s relative to MnCl₂, MnP NPs and AHA@MnP NPs (Figure S5). Further peak splitting of the XPS spectrum of Mn 2p revealed that three distinct peaks corresponding to Mn²⁺ (54.94%), Mn³⁺ (27.47%), and Mn⁴⁺ (17.59%) with binding energies of 640.98 eV, 643.33 eV and 646.48 eV, respectively (Fig. 1J). Similarly, the O 1s spectra showed peaks at 530.98 eV, 531.78 eV, and 536.28 eV, attributed to P-O, metal-oxygen bonding (Mn-O-Mn), and surface oxygen (water, O = C-O), respectively (Figure S6). The Ultraviolet-visible (UV − vis) spectrophotometry confirmed characteristic absorption peaks: MnP NPs and AHA@MnP NPs exhibited a distinct peak at 206 nm, indicative of MnP core formation, while QCT and AHA@MnP/QCT NPs displayed a typical peak at 300 nm, confirming the presence of QCT (Fig. 1K). Based on the absorbance at 300 nm, the content of QCT in AHA@MnP/QCT NPs was calculated to be 12.3% with an encapsulation efficiency of 93.2% (Table S2). Collectively, these results demonstrated the successful synthesis of AHA@MnP/QCT NPs.

Fig. 1

Characterization of AHA@MnP/QCT NPs. (A) The pictures of QCT, AHA@MnP and AHA@MnP/QCT; (B-C) Representative SEM (B) and TEM (C) image of AHA@MnP/QCT NPs; (D) EDS mapping characterization images of AHA@MnP/QCT NPs; (E) EDS characterization of AHA@MnP/QCT NPs; (F) Hydrodynamic size distribution of AHA@MnP/QCT NPs; (G) Zeta potential of QCT, MnCl₂, MnP, AHA@MnP and AHA@MnP/QCT NPs; (H) FT-IR spectra of AHA@MnP/QCT, AHA@MnP and MnP NPs; (I) XPS analysis of AHA@MnP/QCT NPs; (J) The peaks of Mn 2p of AHA@MnP/QCT NPs; (K) UV − vis spectra of nanoparticles

The stability of the AHA@MnP/QCT NPs was assessed through various metrics, including dilution stability, media compatibility, and long-term storage by determining the particle size of the NPs. Remarkably, The NPs retained their particle size (~ 270 nm) even after 512-fold dilution and the size remained (Figure S7A) consistent across different media, indicating robust dilution stability and the adaptability of these NPs in diverse biological environments (Figure S7B). Notably, a slight increase in particle size was observed in phosphate buffered saline (PBS) solution, likely due to the elevated phosphate concentration disrupting the AHA encapsulation and promoting growth of the MnP core. Moreover, the NPs exhibited long-term stability with minimal changes in size when stored at 4 °C for up to three weeks (Figure S7C). In summary, these findings indicated the exceptional stability of AHA@MnP/QCT NPs, positioning them as promising candidates for in vivo therapeutic applications.

Cellular uptake and release mechanisms of AHA@MnP/QCT NPs

The cellular uptake of NPs is a critical determinant of pharmacological efficacy, influencing their intracellular fate, biological response, and overall therapeutic potential within tumor environments [29]. Biocompatible hyaluronic acid (HA) is often chosen as both a “target head” and “stabilizer”, ensuring the stability of the NPs and improving tumor targeting [30]. The incorporation of HA endowed the NPs with a strong negative charge and facilitated specific targeting of the CD44 receptors on tumor cells [31], which is overexpressed in non-small cell lung cancer cells. The fluorescence intensity of FITC labeled AHA@MnP/QCT NPs in Lewis cells was quantified by flow cytometry, and it was slightly lower than that of the Lipo₂₀₀₀/FITC, but significantly higher than that of all other groups (Fig. 2A). After a 6 h incubation, the fluorescence intensity of AHA@MnP/FITC NPs was approximately four times greater than MnP/FITC NPs and ten times greater than free FITC (Fig. 2B). In addition, pre-treatment with HA significantly reduced the fluorescence intensity of AHA@MnP/FITC NPs, which was not significantly different from free FITC, supporting the critical role of HA in CD44 receptor-mediated targeting during NPs uptake. Similar trends were observed in laser confocal microscopy images, where AHA@MnP/QCT NPs and Lipo₂₀₀₀/Cy5 showed strong enrichment in tumor cells with more Cy5 (red)-labeled fluorescence (Fig. 2C). Similarly, the uptake of AHA@MnP/FITC NPs in A549 cells was six times higher than MnP/FITC NPs and 13 times higher than free FITC by measuring intracellular fluorescence intensities using flow cytometry (Figure S8A-B). The strong fluorescence of AHA@MnP/QCT NPs and the weak fluorescence of HA pretreatment in confocal images also further illustrate the important role of HA in targeting towards CD44 receptor in tumor cells by NPs (Figure S8C).

The release behavior of AHA@MnP/QCT NPs was further investigated under varying pH conditions to clarify their sensitivity to the acidic tumor microenvironment. Upon mixing the AHA@MnP/QCT NPs with HEPES buffer solutions at different pH levels (pH 7.4, 6.5, 5.0) and then centrifuging, black precipitates appeared at pH 7.4 and 6.5, while a translucent solution stated at pH 5.0 (Fig. 2D). This trend was paralleled by a gradual increase in particle size and PDI as the pH decreased, indicating slow dissolution of the NPs at lower pH values (Fig. 2E). SEM images further corroborated this finding, showing the transformation of smooth spherical particles into irregular scales as pH shifted from 7.4 to 5.0. (Fig. 2F). Notably, Mn²⁺ and QCT release profiles confirmed the pH sensitivity of the NPs. Absorbance values at 525 nm were determined by potassium periodate method to quantify the release of Mn²⁺ from NPs in HEPES buffer solutions at different pH. After 2 h of release, the release rate of Mn²⁺ was only 18.18% at pH 7.4, but increased sharply to 87.12% at pH 5.0 (Fig. 2G). Similarly, QCT release rates quantified at 300 nm were 8.77%, 12.13%, and 84.89% at pH 7.4, 6.5, and 5.0, respectively (Fig. 2H). In summary, these results showed the ability of AHA@MnP/QCT NPs to remain stable under physiological conditions (pH 7.4), but rapidly disintegrate within acidic tumor environment, facilitating localized drug release.

The intracellular release of NPs within the Lewis cells was visualized using laser confocal microscopy, showing that Cy5 fluorescence (the red dots) gradually escaped from lysosome markers (the green dots) over time, indicating that the colocalization of Cy5 with the lysosome gradually weakened (Fig. 2I). After 6 h, the colocalization coefficient of Cy5 and lysosomes decreased from 85.7 ± 4.00% at 2 h to 33.8 ± 10.74% (Figure S9), indicating efficient lysosomal escape. The color colocalization analysis of the cell sections (shown by the white line) further illustrated the NPs labelled by Cy5 (red line segments) effectively released from lysosomes (green line segments) from 2 h to 6 h (Fig. 2J-K). Similar assays were conducted on A549 cells for clinical applications. The colocalization coefficients of Cy5 and lysosomes were also time-dependent from 87.7 ± 2.95% at 2 h to 47.9 ± 10.09% at 8 h, showing a slower release profile (Figure S10A-B). The slower release of NPs in A549 cells compared to Lewis cells suggested that AHA@MnP/QCT NPs may have sustained anti-tumor activity, contributing to prolonged therapeutic effects (Figure S10C-D).

In conclusion, the cellular uptake and release mechanisms of AHA@MnP/QCT NPs in tumor cells were illustrated in Fig. 2L. Upon proximity (Step 1), signal recognition (Step 2), and uptake via HA-mediated CD44 receptor interaction (Step 3), the NPs dissolve under acidic lysosomal conditions (Step 4), triggering rapid osmotic pressure increase that lead to lysosomal rupture and intracellular drug release from NPs. The intracellular and extracellular processes of NPs as shown in red boxes (Fig. 2M-N) were also confirmed by TEM images of AHA@MnP/QCT NPs-treated Lewis cells, corresponding with the schematic illustration. Compared to untreated cells, AHA@MnP/QCT NPs-treated cells had more black particles and rougher cell edges, which was attributed to the accumulation of incompletely disintegrated NPs inside the cells and their continued pharmacological effects causing tumor cell death. These findings provide critical insights into the mechanism of action of AHA@MnP/QCT NPs and their potential for targeted cancer therapy.

Fig. 2

The endocellular mechanisms and controlled realease of AHA@MnP/QCT NPs. (A-B) Quantitative analysis of the Lewis cells intracellular fluorescence intensities by flow cytometry (FITC: 10 µg/mL, n = 3); (C) The Lewis cells intracellular fluorescence intensities detected by confocal microscopy; (D) Disslution of AHA@MnP/QCT NPs in different pH solutions; (E) The changes of particle size (blue) and PDI (red) for different pH HBS solutions; (F) SEM of AHA@MnP/QCT NPs in different pH HBS solutions; (G-H) Mn²⁺ (G) and QCT (H) release from AHA@MnP/QCT NPs in HBS with different pH values; (I) Confocal imaging of co-localization of AHA@MnP/QCT NPs (Cy5-labeled, red) with lysosomes (Lyso Tracker green, green) in Lewis cells. Hoechst 33,258 (blue) was used for staining the nucleus (Scale bar: 10 μm); (J-K) Fluorescence intensity of Lewis cells section at 2.0 (J) and 6.0 (K) hours; (L) The schematic illustration of transmembrance uptake and lysosomal escape of AHA@MnP/QCT NPs; (M-N) TEM imaging of cellular morphology with untreatment (M) and treatment (N) of AHA@MnP/QCT NPs

The anti-tumor effect of AHA@MnP/QCT NPs in vitro

To explore the therapeutic effects of AHA@MnP/QCT NPs against cancer cells, we employed multiple assays, including the CCK-8 cell counting kit, Annexin V-FITC/PI flow cytometry and Western blotting assay. As shown in Fig. 3A and S11A, severe inhibition of both cancer cell lines (Lewis and A549 cells) was observed after 48 h of treatment with QCT and AHA@MnP/QCT NPs. This inhibitory effect was concentration-dependent, with QCT-treated cells showing approximately 40% cell death at a concentration of 10 µg/mL, while the AHA@MnP/QCT NPs-treated group exhibited 60% cell death at just 5 µg/mL. These findings suggested that not only was QCT effective in suppressing tumor growth, but the NPs significantly enhanced its therapeutic potential, possibly due to the synergistic effects of Mn²⁺ and QCT. The AHA@MnP NPs alone also induced about 50% tumor cell death at 5 µg/mL (Fig. 3B and S11B), further showing their standalone therapeutic effect without QCT. As shown in Fig. 3C, numerous apoptotic vesicles were present in Lewis cells following AHA@MnP/QCT NPs treatment, suggesting that NPs induced apoptosis in tumor cells. In addition, substantial autophagic vesicles were also observed, implying that NPs elicited their effects through multiple pathways rather than inducing apoptosis alone (Figure S12). Flow cytometry assays corroborated these findings, demonstrating that AHA@MnP/QCT NPs significantly enhanced the therapeutic effects on both Lewis and A549 cells compared to QCT alone and AHA@MnP treatment (Fig. 3D and S13). Specifically, AHA@MnP/QCT NPs increased tumor cell death by 5.5-fold in Lewis cells and 4-fold in A549 cells relative to the single action of QCT (Fig. 3E and S14). Similarly, the apoptotic status of Lewis cells was observed by using the method of PI/Calcein-AM double staining, and similar results were obtained (Fig. 3F). To delve deeper into the underlying mechanisms of enhanced tumor cell death, we investigated the expression of proteins from Bcl-2 family and the caspase cascade reactions, which are pivotal regulators of apoptosis. Western blot analysis (Fig. 3G and S15) revealed that treatment with QCT, AHA@MnP and AHA@MnP/QCT NPs led to upregulation of the pro-apoptotic protein Bax. In contrast, the expression of the anti-apoptotic protein Bcl-2 and the inactive effector protein P-Caspase-3 was downregulated, suggesting that the treatment shifts the balance toward apoptosis [32, 33]. These results indicated that AHA@MnP/QCT NPs induced apoptosis through the intrinsic mitochondrial pathway, further enhancing the cytotoxic effects of QCT.

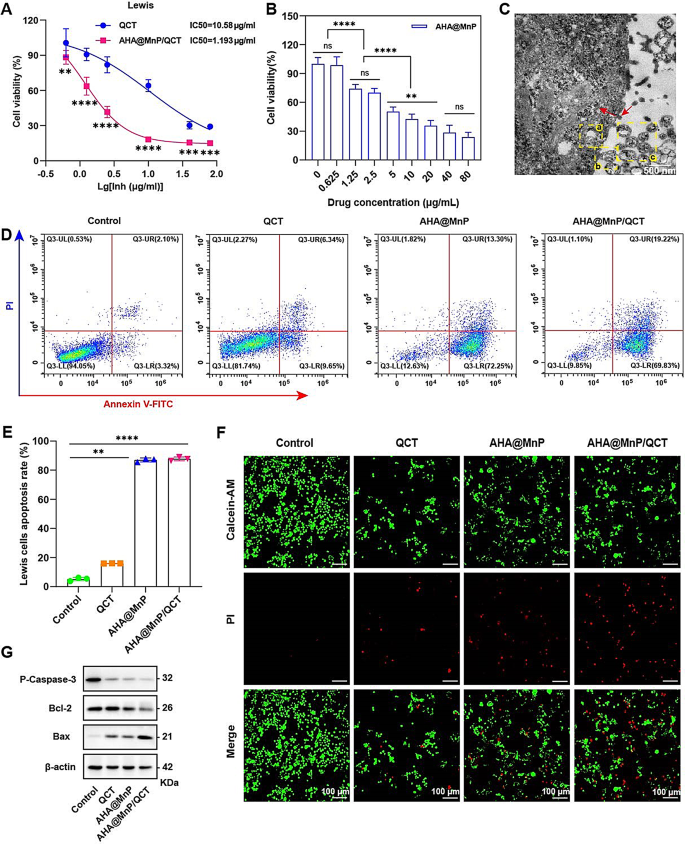

Fig. 3

In vitro treatment effects of AHA@MnP/QCT NPs. (A-B) Relative viabilities of Lewis cells aftertreatment with different concentrations of QCT and nanoplexes for 48 h (n = 6); (C) TEM imaging of the formation of apoptotic bodies with aftertreatment of AHA@MnP/QCT NPs (red arrows: NPs uptake; yellow box: apoptotic vesicle exocytosis); (D) Flow cytometry analysis of Annexin V-FITC/PI costained Lewis cells; (E) Quantitative analysis the apoptosis rate of Lewis cells; (F) PI/Calcein-AM double staining images of Lewis cells; (G) The expression of P-Caspase-3, Bcl-2 and Bax protein for Lewis cells treated with QCT, AHA@MnP or AHA@MnP/QCT NPs

In conclusion, these findings confirmed the potent anti-tumor activity of AHA@MnP/QCT NPs, driven by their ability to enhance apoptosis via Bax/Bcl-2 regulation and activation of the caspase cascade. The results showed the potential of these NPs not only to potentiate the effects of QCT but also to serve as a multifaceted therapeutic strategy that simultaneously targets apoptotic and autophagic pathways.

Pharmacodynamic mechanism of AHA@MnP/QCT NPs

To further determine the anti-tumor pharmacodynamic mechanism of AHA@MnP/QCT NPs, the gene transcriptomic analysis on Lewis cells was conducted by treating with PBS (labeled: Ctrl), AHA@MnP (labeled: AM), and AHA@MnP/QCT (labeled: AMQ). Initially, differentially expressed genes (DEGs) were identified between the AM versus Ctrl and AMQ versus Ctrl groups, revealing 1537 and 1649 DEGs, respectively (Fig. 4A). Compared with the Ctrl group, the DEGs exhibited distinct regulation patterns, with up-regulated genes (red) in the AM and AMQ groups primarily associated with immune effector processes, tumor necrosis factor (TNF) production, apoptotic signaling pathways, and reactive oxygen species (ROS) response (Fig. 4B). In contrast, down-regulated genes (blue) were linked to glycolytic processes, epithelial cell differentiation, ATP metabolism, cell adhesion, and cell development (Fig. 4C). These findings suggested that AHA@MnP/QCT NPs exerted their medicinal effects by promoting tumor cell death and disrupting their metabolic processes through multiple signaling pathways [34].

To further detect the role of ROS in tumor cell death induced by NPs, we analyzed the expression of ROS-related genes in each group (Fig. 4D). Notably, both AM and AMQ groups showed reduced expression of ROS-related genes such as Glrx2 and Sod1 compared with the Ctrl group [35, 36]. The similarity in ROS gene expression between the AMQ and AM groups may be attributed to their equivalent Mn²⁺ concentrations, highlighting the important role of Mn²⁺ in driving ROS-mediated pathways (Fig. 4E). The involvement of TNF signaling, necrosis, and apoptosis pathways was confirmed through Gene Set Enrichment Analysis (GSEA) (Fig. 4F). Quantitative analysis of necrotic and apoptotic pathways up-regulation revealed that both AM and AMQ significantly increased these signals, with AMQ showing the highest percentage of up-regulation (Fig. 4G). This suggested that tumor cell death induced by AHA@MnP/QCT NPs operates through multiple pathways, where both QCT and Mn²⁺ play important roles in mediating the cytotoxic effects, and Fig. 3D and Figure S12 also provide support for this conclusion.

In summary, AHA@MnP/QCT NPs exert their therapeutic efficacy mainly through three interconnected pathways: (i) Increasing the accumulation of ROS, causing mitochondrial and endoplasmic reticulum rupture, and inducing the ferroptosis of tumor cells; (ii) Up-regulating apoptosis and necroptosis pathways through multiple pathways, which contributes to the production of apoptotic and autophagic vesicles; (iii) Stimulating of immune response, which induces the organism to carry out the immune killing of tumor cells.

Fig. 4

Pharmacodynamic mechanism of AHA@MnP/QCT NPs. (A) Volcano plots showing DEGs between AHA@MnP NPs (labeled: AM) and Control (labeled: Ctrl), AHA@MnP/QCT NPs (labeled: AMQ) and Ctrl; (B) Heatmap depicting the enrichment of upregulated genes between AM and Ctrl, AMQ and Ctrl; (C) Heatmap depicting the enrichment of down-regulated genes between AM and Ctrl, AMQ and Ctrl; (D) Box plot depicting the enrichment of Ctrl, AM, and AMQ in ROS-related genes; (E) Heatmap depicting the expression levels of Ctrl, AM, and AMQ in ROS-related genes; (F) The GESA plot showed that the TNF signaling pathway, necroptosis, and apoptosis pathways were up-regulated in the AM and AMQ group compared with the Ctrl group; (G) Bar graph depicting the proportion of necroptosis and apoptotic pathway upregulated in AM and AMQ group

Multiple targeted therapy - Ferroptosis

Mn²⁺, released under acidic conditions, contribute to ferroptosis in tumor cells by interacting with H₂O₂ to initiate a Fenton-like reaction, causing mitochondrial and endoplasmic reticulum rupture (Fig. 5A). To investigate the anti-tumor mechanism of AHA@MnP/QCT NPs, we examined the effects of NPs on H₂O₂, GSH/GSSG, and ROS both in vitro and in tumor cell models. In vitro, the decomposition of H₂O₂ by AHA@MnP/QCT NPs was determined by adding the NPs to a PBS solution containing 100 µM H₂O₂. The appearance of bubbles, highlighted by red boxes, indicated the generation of oxygen (O₂), signaling the breakdown of H₂O₂ (Fig. 5B). Quantitative analysis using a hydrogen peroxide analysis kit revealed that H₂O₂ was nearly fully decomposed within 3 h (Fig. 5C). The proposed mechanism involved the release of Mn²⁺ through the following reactions: (i) Mn₃(PO₄)₂ (s) + 4 H⁺ → 3Mn²⁺ + 2H₂PO₄⁻. (ii) Mn²⁺ + H₂O₂ → MnO₂ + 2 H⁺. (iii) MnO₂ + H₂O₂ + 2 H⁺ → Mn²⁺ + 2H₂O + O₂↑ [37]. As shown in Figure S16, treatment with different NPs resulted in a significant downregulation of Eno1 expression, suggesting a marked reduction in intracellular glycolysis. This metabolic shift likely increased the availability of oxygen within the tumor microenvironment, while concurrently enhancing the consumption of hydrogen peroxide [38]. Furthermore, Mn²⁺ promoted the Fenton-like reactions (Mn²⁺ + H₂O₂ + H⁺ → Mn³⁺ + H₂O + ·OH), which converted GSH to GSSG, contributing to oxidative stress. To assess ·OH production in an acidic environment (pH ~ 4), we used methylene blue (MB) as an indicator. MB degrades in the presence of ·OH, leading to decreased absorbance [39]. While H₂O₂ alone caused minimal absorbance change (~ 4%), AHA@MnP/QCT NPs led to a ~ 50% decrease, likely due to the partial influence of NPs on the absorbance measurement of MB. The combination of AHA@MnP/QCT NPs and H₂O₂, however, resulted in a significant decrease (~ 65%), confirming the NPs’ ability to generate ·OH efficiently via a Mn²⁺-mediated Fenton-like reaction (Figure S17). In tumor cell models, we quantified H₂O₂ and GSSG levels in NP-treated Lewis cells using a hydrogen peroxide kit and a GSH-GSSG kit. NPs caused a statistically significant decrease in H₂O₂ (by 50%) and a statistically significant increase in GSSG (by 125%), compared with untreated Lewis cells (Fig. 5D-E). in A549 cells, similar effects were observed, with a 75% decrease in H₂O₂ and a 315% increase in GSSG (Figure S18).

Images of TEM showed that unlike the smooth mitochondrial surface in untreated Lewis cells, mitochondria in Lewis cells treated with AHA@MnP/QCT NPs for 6 h appeared hollow and ruptured, with fragmented endoplasmic reticulum (Fig. 5F). This damage was attributed to excessive accumulation of ROS, which triggered ferroptosis. As shown in Figure S19A-B, a large accumulation of ROS happened after 2 h of AHA@MnP/QCT NPs treatment in Lewis cells, implying the rapid action of NPs. Additionally, flow cytometry confirmed that ROS levels significantly increased in Lewis cells after 2 h of AHA@MnP/QCT NPs treatment, reaching 2.0-fold higher levels compared to untreated cells (negative control) and 1.5-fold higher than the ROSup positive control (Fig. 5G). Laser confocal microscopy further validated these results, showing where more fluorescent green dots (DCFH-DA, a probe for quantitative detection of ROS) in AHA@MnP/QCT NPs treated Lewis cells, suggesting that the NPs promoted ROS production (Fig. 5H). In A549 cells, ROS production followed a time-dependent pattern, peaking after 6 h of NPs treatment and leveling off by 8 h (Figure S19C-D). After 8 h, ROS levels in AHA@MnP/QCT NPs-treated cells were 2.9 higher than untreated cells and 1.8-fold higher than the ROSup group, with only a slight difference from the AHA@MnP NPs group (1.2-fold higher) (Figure S19E-F). This was supported by the fluorescence profile of the laser confocal microscope (Figure S19G). Accumulation of reactive oxygen species (ROS) can induce lipid peroxidation within cells, subsequently leading to cellular damage. To validate the peroxidation status in tumor cells, the BODIPY 581/591 C11 probe and Western blot analysis were employed. The results demonstrated that in the AHA@MnP NPs, AHA@MnP/QCT NPs, and LPOup groups, a higher proportion of oxidized BODIPY was detected, while the control group predominantly exhibited the reduced state (Fig. 5I-J) [40]. Concurrently, the Western blot results also indicated a significant upregulation of lipid peroxidation (LPO) protein expression in tumor cells following nanoparticle (NPs) treatment (Fig. 5K). These results suggested that AHA@MnP/QCT NPs can efficiently produce ·OH via a Fenton-like reaction, causing a decrease in intracellular reducing substances and an increase in free radicals. This led to excessive ROS accumulation in mitochondria and the endoplasmic reticulum, ultimately inducing ferroptosis in tumor cells [41].

Fig. 5

Mechanism of ferroptosis generation in AHA@MnP/QCT NPs. (A) Schematic illustration for AHA@MnP/QCT NPs involved in the ferroptosis process; (B) Image of H₂O₂ decomposition after treatment with different nanoplexes; red farme, gas bubble; (C) curve of H₂O₂ decomposition (n = 3); (D) Intracellular H₂O₂ level for Lewis cells treated with AHA@MnP NPs or AHA@MnP/QCT NPs; (E) Intracellular GSSG level for Lewis cells treated with AHA@MnP NPs or AHA@MnP/QCT NPs; (F) Tem images of mitochondria (a-b) and endoplasmic reticulum (c) in Lewis cells before and after AHA@MnP/QCT NPs treatment; (G) Quantitative analysis of the Lewis cells intracellular fluorescence intensities after treatment with different nanoplexes by flow cytometry; (H) Confocal images of DCHF-DA-stained Lewis cells pre-treated AHA@MnP NPs or AHA@MnP/QCT NPs (Scale bar: 100 μm); (I) Confocal images of BODIPY 581/591 C11-stained Lewis cells pre-treated AHA@MnP NPs or AHA@MnP/QCT NPs (Scale bar: 50 μm); (J) Quantitative analysis of the Lewis cells intracellular fluorescence intensities after treatment with different nanoplexes (n = 3); (K) The expression of LPO protein for Lewis cells treated with AHA@MnP NPs or AHA@MnP/QCT NPs. ****P < 0.001, ***P < 0.001

Multiple targeted therapy - immunogenic cell death

Mn²⁺ has been shown to cause immunogenic death of tumor cells through activation of the cGAS-STING pathway [42]. To explore this ICD mechanism, we conducted a series of protein blotting assays to assess key ICD biomarkers. As shown in Fig. 6A-B, treatment with various NP formulations led to a marked upregulation of cGAS and phos-STING/STING, indicative of ICD activation and subsequent engagement of the cGAS-STING signaling axis. This activation is crucial for the proliferation and maturation of dendritic cells and the subsequent activation of T cells [43]. To further validate the induction of ICD, we measured the release of ATP, HMGB1 and calreticulin (CRT) using both commercial assay kits and immunofluorescence techniques. As shown in Fig. 6C-D, the AHA@MnP NPs and AHA@MnP/QCT NPs significantly increased the secretion of ATP and HMGB1 in the cell culture medium. Also, CRT expression was significantly higher in lewis cells (possessing more fluorescent labeling) (Fig. 6E). The above results indicate that AHA@MnP/QCT NPs activate the cGAS-STING pathway by stimulating tumor cells to secrete ATP, HMGB1 and CRT, which elicits a strong anti-tumor immune response in the body.

Fig. 6

Mechanisms of immunogenic cell death in AHA@MnP/QCT NPs. (A) The expression of cGAS, p-STING and STING protein for dendritic cells treated with AHA@MnP or AHA@MnP/QCT NPs; (B) Quantitative analysis the protein intensity rate of dendritic cells. Data are presented as the mean ± SD (n = 3); (C) Intracellular ATP level for Lewis cells treated with AHA@MnP NPs or AHA@MnP/QCT NPs; (D) Intracellular HMGB1 level for Lewis cells treated with AHA@MnP NPs or AHA@MnP/QCT NPs. ****P < 0.001, ***P < 0.001, **P < 0.01, *P < 0.05 (E) Confocal images of CRT expression in Lewis cells pretreated with AHA@MnP NPs or AHA@MnP/QCT NPs (Scale bar: 50 μm)

In vivo antitumor assays

AHA@MnP/QCT NPs effectively induced ferroptosis and apoptosis in tumor cells in vitro and showed excellent targeting ability and accumulation at the tumor site. To evaluate their efficacy in vivo, we tested their ability to kill cancer cells in a Lewis tumor-bearing C57 mouse model. Mice were randomized into three groups once the tumor volume reached ~ 100 mm³ (n = 5 per group): (1) saline, (2) AHA@MnP NPs, and (3) AHA@MnP/QCT NPs. Group (1) received saline injections, while groups (2) and (3) received intravenous injections of their respective NPs on day 1 (Fig. 7A). Tumor size, body weight, and survival rates were recorded every 2 days to estimate the continuous therapeutic effectiveness. Compared with the Saline group, both NPs-treated groups showed significant tumor inhibition, with the AHA@MnP/QCT NPs demonstrating the most substantial anti-tumor effect (Fig. 7B-C). The tumor growth inhibition (TGI) rates for the saline, AHA@MnP NPs, and AHA@MnP/QCT NPs groups were − 857.39%, -430.86%, and − 310.90%, respectively. At the end of the treatment period, mice were executed, and tumors were harvested, showing a significant reduction in both tumor size and wight in the NPs-treated groups (Fig. 7D and G). Additionally, the AHA@MnP/QCT NPs group exhibited prolonged survival relative to the saline group (Fig. 7E). These results confirmed the superior anti-tumor efficacy of AHA@MnP/QCT NPs compared with saline.

To explore the mechanism of NPs’ anti-tumor effects, we also examined the distribution of immune cells in tumor sections and macrophage polarization. Fluorescent labeling and ImageJ quantification showed enhanced intertumoral abundance of dendritic cells, helper T cells (CD4 + T cells), and primary CTL (CD8 + T cells) in the AHA@MnP/QCT NPs and AHA@MnP NPs groups, along with a significant reduction in Treg cells due to Mn²⁺ overloading, compared with the saline group (Fig. 7F and H-K). These results suggest that AHA@MnP/QCT NPs can significantly elicit lymphocyte responses within tumors. Meanwhile, the results of polarization assays showed both NPs-treated tumor tissues had more M1-polarized macrophages (marked by CD80+) and fewer M2-polarized macrophages (marked by CD206+) relative to the saline group (Fig. 7F and L-M). The shift from M2 to M1 phenotypes suggests that AHA@MnP/QCT NPs activated anti-tumor immunity by inducing macrophage polarization [44]. One the other hand, significant effector T-cell infiltration was observed in the NPs-treated groups compared to the Saline group, likely due to the activation of the cGAS-STING signaling pathway by Mn²⁺ (Fig. 7F). Mn²⁺ overloading has been shown to increase the sensitivity of the cGAS pathway ini recognizing DNA, thereby promoting immune maturation [45]. The above results implied that NPs could inhibit tumors by activating immune responses, promoting tumor cell killing, and inhibiting tumor immune escape (Fig. 7N).

Fig. 7

In vivo antitumor effect of AHA@MnP/QCT NPs. (A) Scheme illustration for the in vivo evaluation of antitumor therapy; (B) The images for Lewis’s tumor bearing mice treated with AHA@MnP or AHA@MnP/QCT NPs; (C)Tumor growth curves of the mice treated with different samples. n = 5, ****P < 0.0001, ***P < 0.001; (D) Digital photos of excised tumors from the mice at day 12. (E) Survival curves analysis; (F) Immunofluorescence was used to examine CD11C+, CD4+, CD8+, Fopx3+, CD80 + and CD206 + in tumor sections. Scale bar = 50 μm; (G) Tumor weight analysis; (H-M) Fluorescence intensity of tumors calculated based on part (F) using ImageJ. The results are expressed as mean and SD. *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001; (N) Scheme illustration for AHA@MnP/QCT NPs involved in the immunotherapy process

Biocompatibility analysis of AHA@MnP/QCT NPs

To ensure clinical translation, it is important to assess the toxicity and biological safety of the produced NPs. Therefore, we investigated their biocompatibility and biological safety both in vitro and in vivo. Hemolysis assays demonstrated that the hemolysis rates of QCT, AHA@MnP NPs, and AHA@MnP/QCT NPs were all below 5% (Figure S20). Similarly, after treatment with each group of NPs at a concentration of 40 µg/mL, the survival rate of murine fibroblasts (L929) remained above 75% (Figure S21), suggesting favourable in vitro safety profiles for all groups. In vivo, there was no significant systemic toxicity as evidenced by stable body weights across the three treatment groups, and no mortality was observed throughout the treatment period (Figure S22). Biosecurity evaluations were conducted, including histopathological analysis using hematoxylin and eosin (HE) staining of major organs, routine blood tests, and blood chemistry assessments. HE staining showed metastasis of tumor tissue in the lungs and livers of mice in the saline group (shown by red arrows), whereas no significant metastasis was detected in the AHA@MnP NPs and AHA@MnP/QCT NPs groups (Fig. 8A). This suggested that NPs had the potential to inhibit tumor metastasis, which aligned with the phenomenon observed in solid tumors (Fig. 8B). Additionally, there was no notable damage or abnormality in other major organs in all three groups of mice, further indicating the absence of adverse effects on normal tissues (Fig. 8A). Routine blood tests and blood chemistry results showed no significant adverse effects in any of the groups (Fig. 8C-D). We concluded that the pH-responsive AHA@MnP/QCT NPs demonstrated the potential to inhibit tumor growth through multiple mechanisms, including ferroptosis, apoptosis, and immunogenic cell death, while maintain favourable biosafety. Furthermore, the NPs exhibited potential for preventing tumor metastasis, supporting their use in multi-targeted cancer therapy.

Fig. 8

Biocompatibility testing of AHA@MnP/QCT NPs. (A) H&E staining of tumors and major organs in mice with various treatments; (B) The pictures of lungs and liver after treatment in each group (red circle: metastatic tumor tissue); (C) Blood biochemistry analysis; (D) Complete blood count analysis

Non-invasive imaging of AHA@MnP/QCT NPs

Studying the biodistribution of NPs in the human body is essential for the treatment and diagnosis of tumors. AHA@MnP/QCT NPs show significant potential due to their targeting ability and the imaging properties of Mn²⁺, enabling non-invasive imaging [46]. Here, we labeled initially AHA@MnP/QCT NPs with Cy7 and analyzed their targeting capability based on Cy7 fluorescence, to confirm the NPs’ accumulation at the tumor site (Fig. 9A). Using an in vivo fluorescence imaging system (IVIS), we observed Lewis’s cancer cell-bearing C57 mice intravenously injected with Cy7-labeled MnP/QCT NPs or Cy7-labeled AHA@MnP/QCT NPs (10 mg/kg, with the same fluorescence intensity), and imaged at various time points (0, 6, 12, 24, and 48 h). As shown in Fig. 9B-C, Cy7 fluorescence intensity increased at the tumor site over time, with AHA@MnP/QCT NPs group displaying stronger and more persistent fluorescence than the MnP/QCT NPs group. Furthermore, the isolated organ shots indicated that the Cy7-labeled AHA@MnP/QCT NPs mainly accumulated in the liver and tumor site with partial enrichment at 24 h, with tumor site concentration peaking at 48 h, while other organs exhibited significantly reduced enrichment. Meanwhile, there was no significant difference of the Cy7-labeled MnP/QCT NPs’ enrichment between 24 h and 48 h, indicating that addition of AHA endowed the NPs excellent targeting properties (Fig. 9D-E).

Mn²⁺ enrichment at the tumor site can also be used for MRI imaging. To explore this, we tested the NPs’ imaging ability under different pH conditions, using free Mn²⁺ as a positive control. As shown in Fig. 9F-G, the T₂ intensity of free Mn²⁺, pH 6.5, and pH 5.0 groups gradually weakened with the extension of time, while minimal change occurred in the AHA@MnP/QCT NPs pH 7.4 group, indicating that the NPs remained stable in normal tissues and dissolve in the acidic tumor microenvironment, enabling tumor imaging. We further measured the imaging of NPs at various concentrations (0.25, 0.5, 1.0, and 2.0 mM) after mixing them with buffer solution for 2 h. The results showed that the T₂ intensity decreased significantly as the AHA@MnP/QCT NPs concentration increased, with the intensity at 2 mM dropping below 30% in all groups except at pH 7.4 (Fig. 9H-I). Additionally, MRI imaging in Lewis’s tumor-bearing C57 mice injected with AHA@MnP/QCT NPs showed a time-dependent decrease in T₂ intensity, with the lowest at 1 h, followed by an increase after 2 h, likely due to the NPs metabolism and reduced the Mn²⁺ concentration at the tumor site (Fig. 9J-K). Based on this feature, AHA@MnP/QCT NPs can be used as a rapid diagnostic reagent for non-small cell lung cancer. Similarly, MRI images of mice were taken after administration of various concentrations of AHA@MnP/QCT NPs in the tail vein for 1 h. The results showed a peak imaging intensity at 1 mM with little change at higher concentrations, indicating that AHA@MnP/QCT NPs can provide excellent imaging at a low concentration (Fig. 9L-M). In summary, AHA@MnP/QCT NPs exhibited excellent targeting and pH-responsiveness, which ensured that the NPs can release high concentration of Mn²⁺ at the tumor site. The enriched Mn²⁺ can be used as a diagnostic reagent for MRI imaging, which made the NPs a promising tool for diagnosing non-small cell lung cancer and deep tumors, offering a new approach to non-invasive cancer imaging.

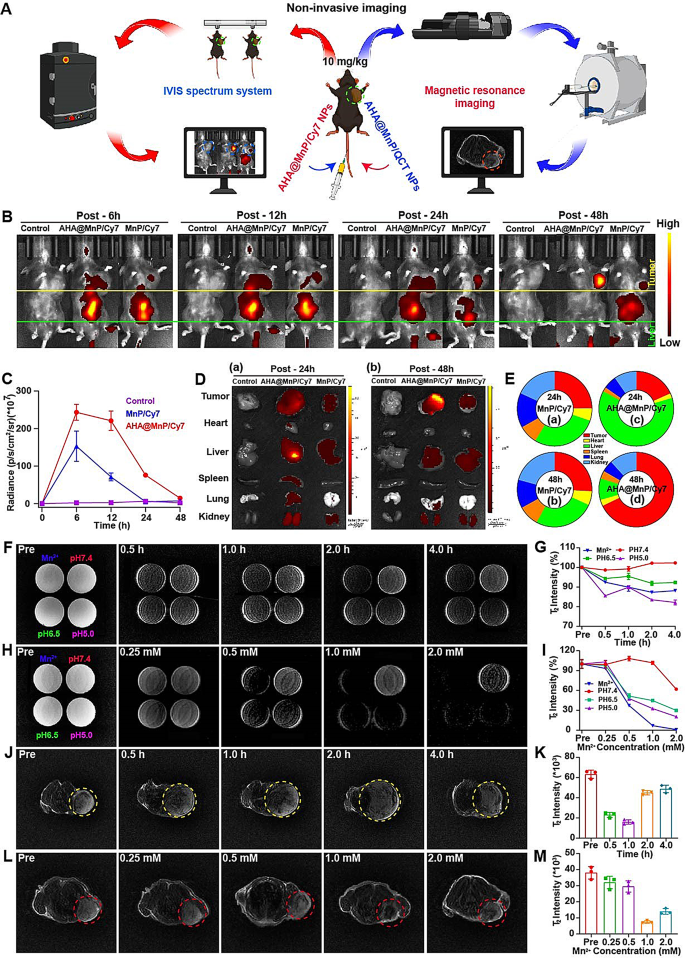

Fig. 9

Biodistribution and non-invasive imaging of AHA@MnP/QCT NPs in vitro and in vivo. (A) Schematic illustration for AHA@MnP/QCT NPs involved in the biodistribution and non-invasive imaging; (B) Representative fluorescence images of NPs-treated mice in vivo at different time points (n = 3); (C) Radiant efficiency of fluorescence in Lewis cancer cell-bearing mice at different time points; (D) Fluorescence images of major organs and tumors obtained 24 h and 48 h postinjection; (E) Radiant efficiency of fluorescence in major organs and tumors; (F) T₂-MRI images for different times of AHA@MnP/QCT NPs in HEPES buffer with different pH conditions (7.4, 6.5, 5.0); (H) T₂-MRI images for different concentrations of AHA@MnP/QCT NPs in HEPES buffer with different pH conditions (7.4, 6.5, 5.0); (J) T₂-MRI images for Lewis tumor bearing mice at various times, after the intravenous injection of AHA@MnP/QCT NPs; (L) T₂-MRI images for Lewis tumor bearing mice at various concentrations, after the intravenous injection of AHA@MnP/QCT NPs; (G,I) Quantifcation of T₂-MRI signal intensity of AHA@MnP/QCT NPs from F, H; (K,M) Quantifcation of T₂-MRI signal intensity of tumor areas from J, L

Conclusion

Manganese-containing nanomaterials have great potential for cancer diagnosis and treatment. However, most of the existing manganese-based nanomaterials face challenges, such as low sensitivity to the tumor microenvironment and the intracellular environment of tumor cells (lysosomal environment), along with inefficient accumulation at the tumor site, which leads to unsatisfactory therapeutic effects and poor MRI performance. Here, we successfully developed AHA@MnP/QCT NPs using a generalized cross-linking strategy of TCM active ingredients with metal ligands, wrapped by biocompatible HA. AHA@MnP/QCT NPs offer multiple advantages: they enable the rapid release of Mn²⁺ and QCT in the low pH environment of the lysosome. QCT induces apoptosis of tumor cells by activating the Bax/Bcl-2 pathway and eliciting a caspase cascade reaction. Meanwhile, Mn²⁺ catalyses the generation of highly toxic hydroxyl radicals from endogenous H₂O₂ via a Fenton-like reaction, which depletes GSH, promotes the generation of ROS in the mitochondria and endoplasmic reticulum, and induces ferroptosis. Furthermore, Mn²⁺ activates dendritic cells and T cells to induce ICD, thus exerting a synergistic therapeutic effect. The NPs also demonstrated effective enrichment at the tumor site, effectively enhancing the contrast in T₂-weighted MRI imaging, making them valuable for tumor diagnosis. While these NPs exhibit promising imaging capabilities for primary tumors, further investigation is needed to fully understand their potential in imaging metastatic tumor tissues. In conclusion, the AHA@MnP/QCT NPs showed good tumor suppression and effective MRI imaging in both in vivo and in vitro experiments. Their good biocompatibility, biodegradability, and pH-responsiveness offer a novel one-stone-for-two-birds strategy for the diagnosis and combined treatment of non-small cell lung cancer, paving the way for potential clinical application.

Methods

All methods are available in Supporting Information.
